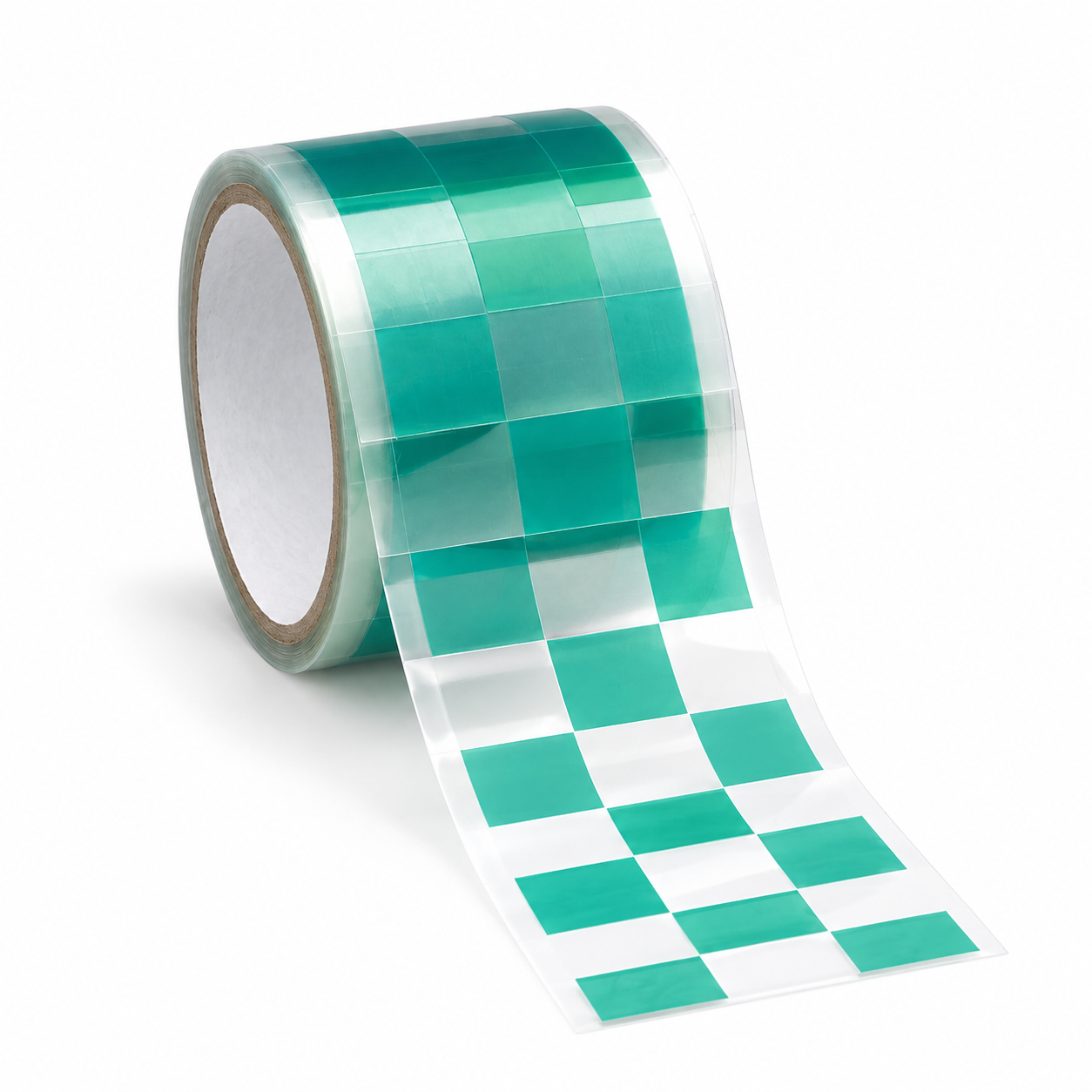

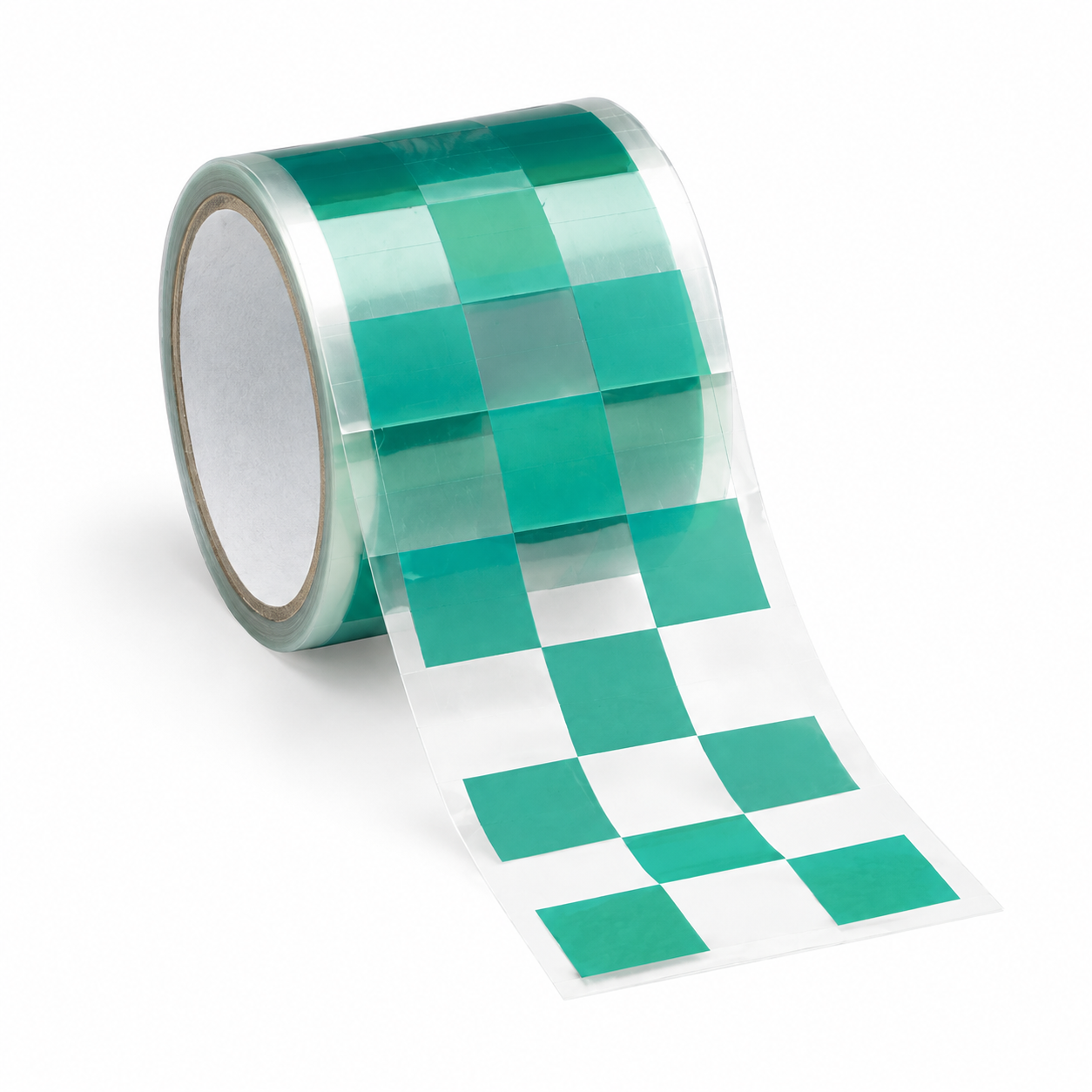

PC-SH Series Square
PC-SH Series green polyester tape squares are die-cut from PC21 high-temperature polyester film tape and designed to mask square areas that need to remain free from coating.
- Square design for precise masking of surfaces

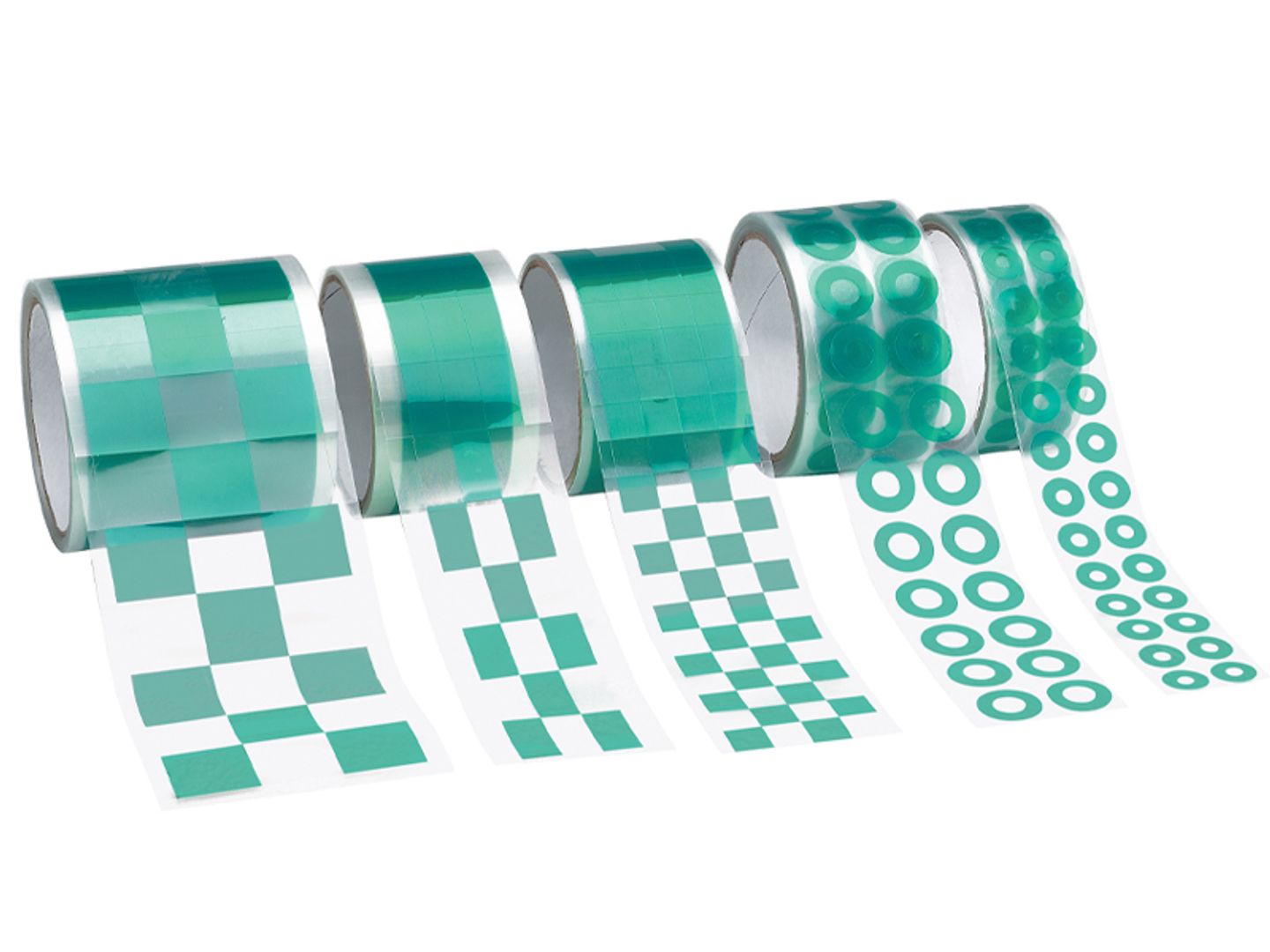

- Also available in circles and rectangles
- Suitable for general-purpose powder coating applications
- Recommended for powder coating, e-coating and anodising
- Withstands temperatures up to 204°C (400°F)
- 2 mil polyester film with 1.5 mil silicone adhesive
- Silicone adhesive removes without leaving residue
- Optional removal tab available for easier handling
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Polyester |
|---|---|
| Standard Colour | Green |
| Optional Colour | Clear |
Part Sizes
Item Number | Disc Diameter (In) | Disc Diameter Fraction (In) | Shape | Qty per Roll |
PC0250SQ | 0.250 x 0.250 | 1/4 x 1/4 | Square | 1000 |
PC0375SQ | 0.375 x 0.375 | 3/8 x 3/8 | Square | 1000 |
PC0500SQ | 0.500 x 0.500 | 1/2 x 1/2 | Square | 1000 |
PC0625SQ | 0.625 x 0.625 | 5/8 x 5/8 | Square | 1000 |
PC0750SQ | 0.750 x 0.750 | 3/4 x 3/4 | Square | 1000 |
PC01000SQ | 1.000 x 1.000 | 1 x 1 | Square | 500 |
PC01500SQ | 1.500 x 1.500 | 1-1/2 x 1-1/2 | Square | 500 |
PC02000SQ | 2.000 x 2.000 | 2 x 2 | Square | 250 |
